Toyota Proace/Peugeot Expert/Citroen Dispatch-Campervan Modular System (fridge not included) Modular System MWB 2016 onwards

• Fully assembled & includes Dometic 9722 hob/sink combination
• Option for a fridge (NOT including fridge) version with the Vitrifrigo c39i on the left side of the pod
• Lead time 3 weeks
• Colour Options: Black Hex with silver edging trim, Black Hex with a natural ply edge or Carbon Grey Lightweight Camper Ply

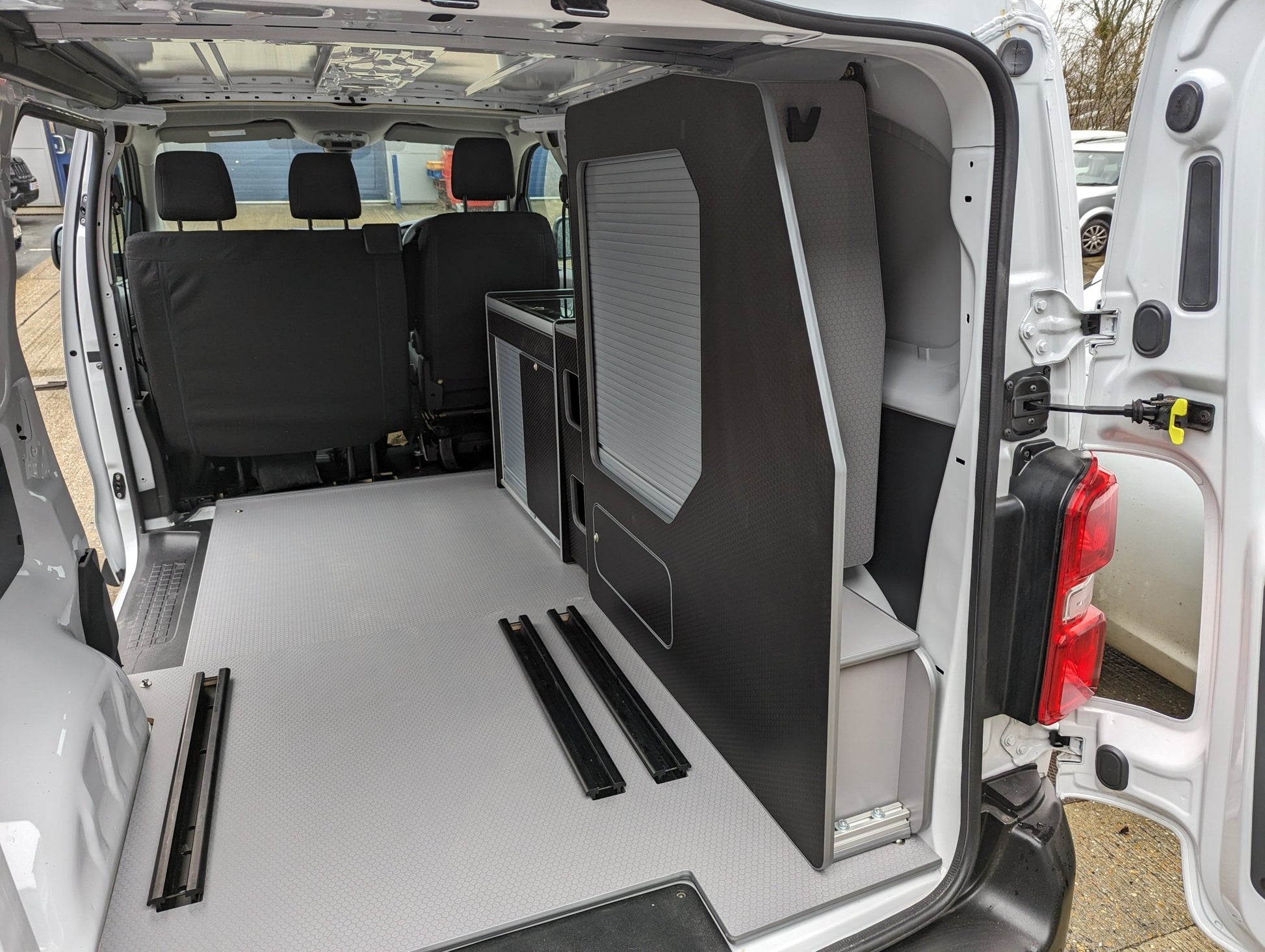

The generation 2 X-Pod kitchen pod is added here to a Rear-Pod storage unit to form the X-System for down the side of the van furniture. It comes with a built in double burner hob, tap & plumbing. There is now a option for a tambour door with storage or space for a fridge (39l) and a side door that turns into a table. The Vangear Rear Pod is added to form a modular system. It is designed for the Toyota Proace/Peugeot Expert/Citroen Dispatch-panel van. This version is deeper at 370mm and this pod will work with a 3/4 rock & roll bed (1120mm).

X-Pod

• Fully assembled & ready to go
• Includes double burner hob/sink combination
• Plug & play with integrated plumbing & 12v plug (just add the gas bottle)
• Universal fit with bolts supplied or optional anchor/cleats
• Colour Options: Black Hex with silver edging trim, Black Hex with a natural ply edge or Carbon Grey Lightweight Camper Ply
• Anodised aluminium table rails front and back
• Side Table/door - the door becomes the table
• Tambour door or fridge  options
• Includes Dometic 9722 sink/hob combination unit + Florenz tap
• Ignition and flame safety cut out
• Option for an all electric version with the Sterling Power single induction hob (Variable power consumption | 8 settings 200W-1500W - ideal for inverter use) + a sink with a rechargeable tap
• Floor mounted fixing slots for bolt down fixing to all vans.
• Fitment to sliding seat rail systems with our optional Vangear anchor cleat (ie VW Caravelle/California, Mercedes, Citroen)
• 10L water bottle with auto feeding pump supplying tap
• Gas bottle tray for Campingaz bottle R904 or R907 (not supplied), bottle belts and gas regulator
• Rear carry handle
• Raised floor with space for Unwin rail
• Total weight = 60kg excluding the optional fridge

Dimensions:

Short Wheelbase (based on VW T5/T6/T6.1 SWB)

Height = 1300mm (kitchen pod height = 750mm)

Length = The Rear Pod is 1385mm ( including mid shelf unit at 235mm) at the base + the kitchen pod (840mm) = 2225mm

Depth =   The kitchen pod depth is 390mm

For the Rear Pod depth:

370mm (this system uses the deeper version for panel vans)

Total weight = 60kg excluding the optional fridge

Please see our other listing for the Long Wheelbase version

Rear-Pod

Straight edged Rear Pod - suitable to sit alongside the X-Pod

This unit can be ordered without the joining piece on the left if you don't want to place a kitchen pod next to it.

• Fully assembled and ready to fit
• Easy access
• Plenty of storage
• Available in Black, Grey or Driftwood
• This unit will need to be secured to the floor and side of the van.
• Secure to sliding rails with our cleats or bolt onto floor
• Large tambour door with storage behind
• Fit with a 3/4 rock & roll bed i.e. the RIB 112  (1120mm wide)
• Rear coat hanging area/equipment area
• Option for a 30L water tank stored in the rear unit (we do not provide the plumbing for this option)

Materials and weights

Kitchen pod

Black hex - phenolic birch plywood 24kg

Grey or Driftwood camper ply = 22kg

Rear Pod

Black hex - phenolic birch plywood (weight = 33kg)

Grey - lightweight campervan ply (weight = 29kg)

Driftwood -  lightweight campervan ply (weight = 29kg)

Fitting Options

A fitting kit is included for fitting this to a VW T5, T6 or T6.1. This includes bolts for the loading points to fix the rear unit (+ a kit for fixing the side of the unit to the side of the van) and standard bolts for the kitchen unit. The kitchen unit could also be secured to the seat brackets with our j-bolts or we have unwin rail sections for if you need the kitchen pod to be removable on a plywood floor.

We also have a wide range of rail fixing cleats if you have a sliding rail system - please note that if you have the original factory panels (e.g. Shuttle/Caravelle) then you will need the slimline version of our rear pod.

 Please see our youtube video for more info on fitting our systems

Concept and benefits of Vangear pods

Our units are intelligently designed to maximise space and provide a flexible, adaptable campervan system. We build our units with solid quality materials and they are fully assembled ready to be easily fitted into your campervan conversion.

• High-quality build and innovative features
• Stylish design and practical
• Fully assembled campervan unit, ready to go in a good value package
• Universal fitment into many camper vans VW, T4, T5, T6, Vito, Transit, Peugeot, Citroen, Toyota etc
• Fitment to sliding seat rail systems with our Vangear anchor cleat ie VW Caravelle, California, Multivan
• Lightweight with integrated plumbing systems
• Reduced fitting times, simple to fit
• A kitchen unit that can form part of an innovative modular system
• Spares and technical backup

 Our Fitment Support Guarantee

In the event of problems fitting your pod we will:

• Help with technical advice
• Help you with any fitting adaptors/ extra mounting plates
• In the unlikely event that the unit does not fit - A 30 day return policy
• We also provide a 1 year warranty on parts

Delivery

• Designed and manufactured by Vangear in East Sussex, UK
• Units are made to order and can be delivered on a pallet to your home or collected from our workshop
• £75 Large UK pallet delivery (+£30 surcharge will apply for N. Ireland and the Highlands)
• Lead time = 3 weeks (unless on the in stock page)
• We are currently unable to ship pallets to Europe
• We offer a 30 day return policy (excluding postage)
• Watch our videos, for more information
• View our units at our Ditchling (East Sussex) workshop (appointment please)
• Call us for more information 01444 247129  07810592353
